【第1篇】Python爬虫实战-王者荣耀高清壁纸下载

快来打我* 2023-10-03 13:08 26阅读 0赞

> 目标网址：[https://pvp.qq.com/web201605/wallpaper.shtml][https_pvp.qq.com_web201605_wallpaper.shtml]

**目录**

1、页面分析

2、程序源码

3、结果展示

--------------------

### 1、页面分析 ###

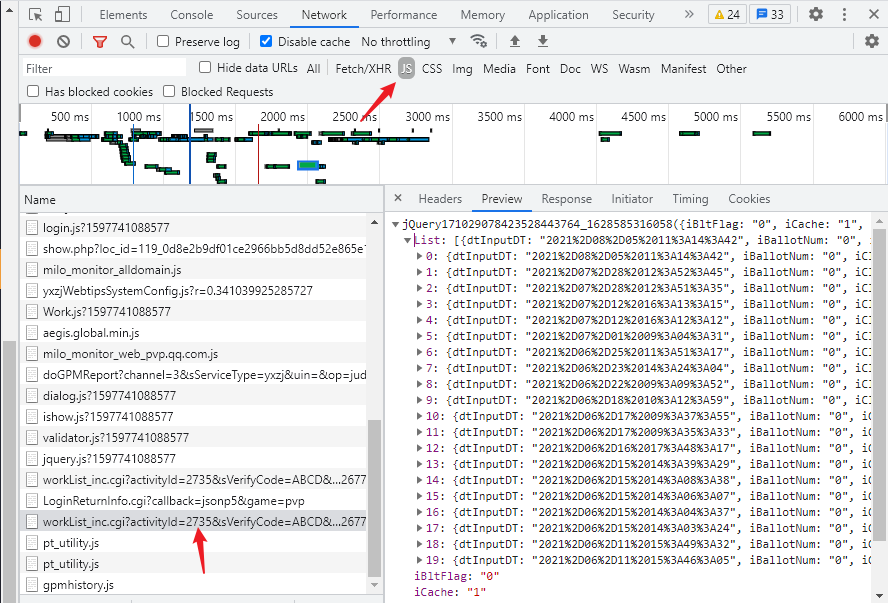

通过F12打开浏览器控制台，刷新一下页面，通过依次查看，可以找到页面请求请求地址

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzE5MzA5NDcz_size_16_color_FFFFFF_t_70][] 由于返回的数据不是标准的JSON格式我们需要对url进行简化处理，最终得到url地址为：

> [https://apps.game.qq.com/cgi-bin/ams/module/ishow/V1.0/query/workList\_inc.cgi?iTypeId=2&sDataType=JSON&iListNum=20&page=1&iActId=2735][https_apps.game.qq.com_cgi-bin_ams_module_ishow_V1.0_query_workList_inc.cgi_iTypeId_2_sDataType_JSON_iListNum_20_page_1_iActId_2735]

请求这个url地址就可以得到一个标准的JSON数据格式，其中page表示当前页码，iListNum表示每页展示多少条数据。

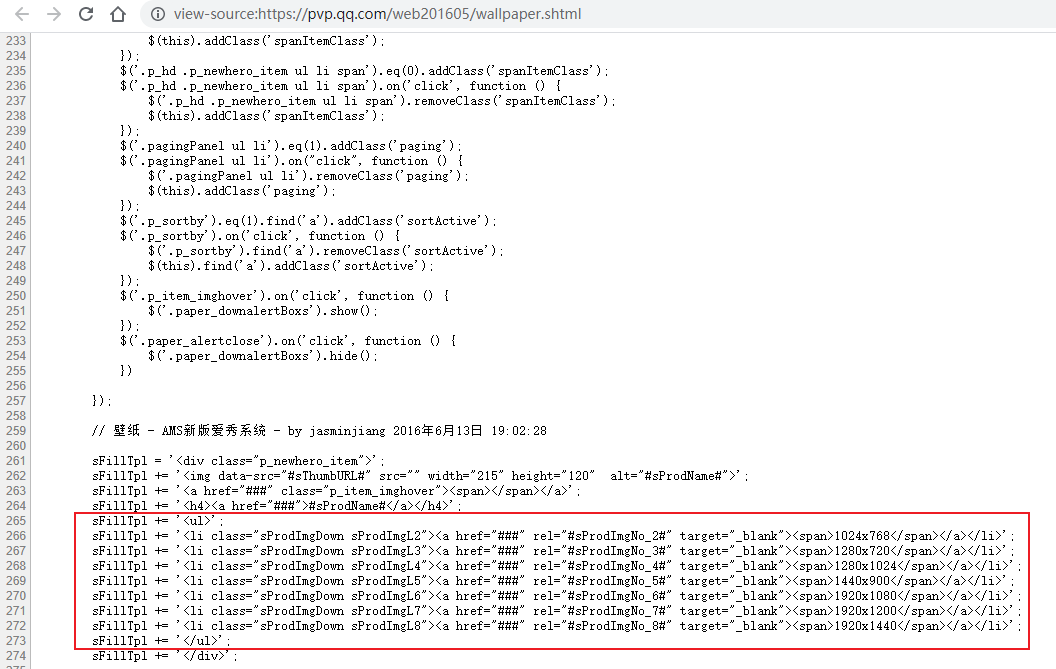

我们再来分析这个JSON，通过页面源码可以找到这段代码

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzE5MzA5NDcz_size_16_color_FFFFFF_t_70 1][]

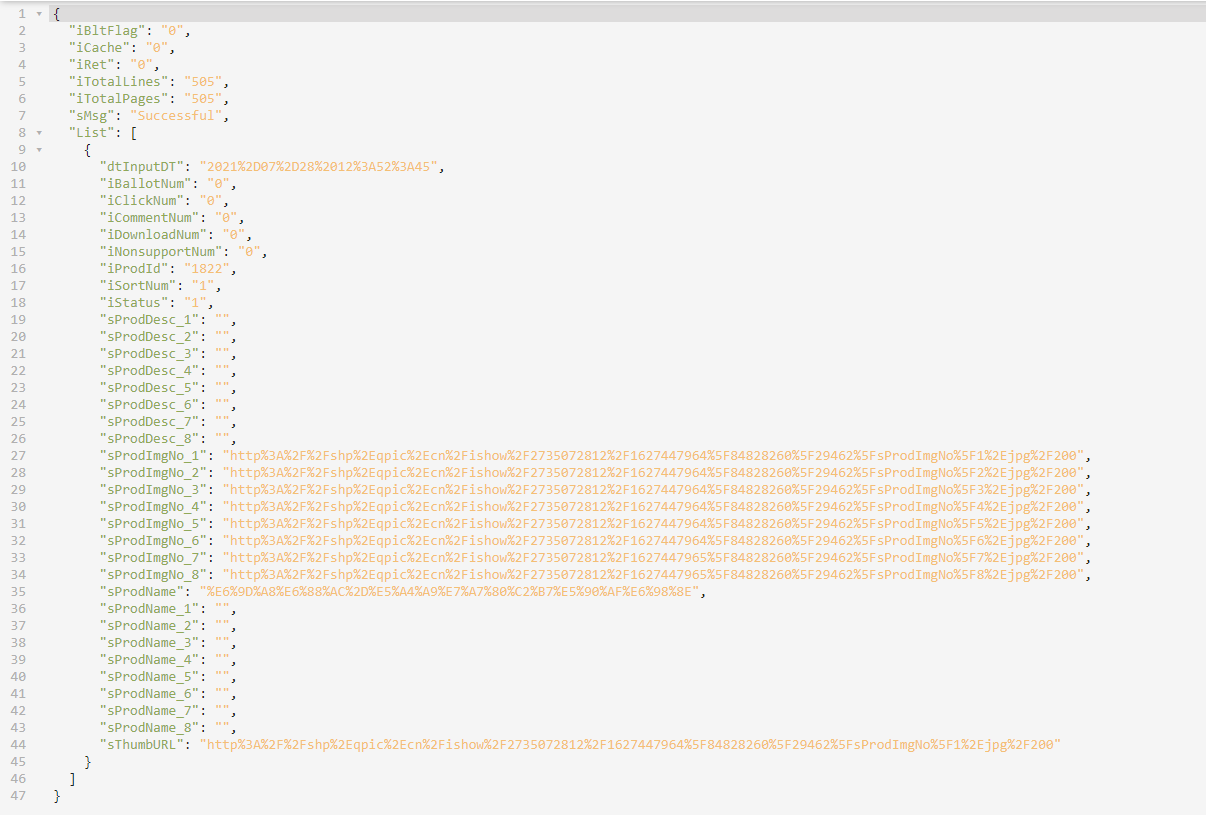

说明：

sProdImgNo\_2对应的图片分辨率：1024x768

sProdImgNo\_3对应的图片分辨率：1280x720

下面依次类推……

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzE5MzA5NDcz_size_16_color_FFFFFF_t_70 2][]

我们以sProdImgNo\_2的值举例：

http%3A%2F%2Fshp%2Eqpic%2Ecn%2Fishow%2F2735072812%2F1627447964%5F84828260%5F29462%5FsProdImgNo%5F2%2Ejpg%2F200

我们对该地址进行url解码之后，发现

> [http://shp.qpic.cn/ishow/2735080511/1628133281\_84828260\_9817\_sProdImgNo\_2.jpg/][http_shp.qpic.cn_ishow_2735080511_1628133281_84828260_9817_sProdImgNo_2.jpg]200
>
> 这个地址是压缩图片地址
>
> [http://shp.qpic.cn/ishow/2735080511/1628133281\_84828260\_9817\_sProdImgNo\_2.jpg/0][http_shp.qpic.cn_ishow_2735080511_1628133281_84828260_9817_sProdImgNo_2.jpg]
>
> 这个是真实的图片地址
>
> 如何找到真实地址，简单就是把url地址末尾的200改为0即可。

至此页面请求分析完成。

### 2、程序源码 ###

#!/usr/bin/python
    # -*- coding: UTF-8 -*-
    """
    @author: YangPC
    @QQ:327844761
    @微信公众号：ewbang
    """
    import requests
    from urllib import parse
    import os

    headers = {
        'user-agent': 'Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/91.0.4472.77 Safari/537.36'
    }


    def func(page=1):
        url = f'https://apps.game.qq.com/cgi-bin/ams/module/ishow/V1.0/query/workList_inc.cgi?iTypeId=2&sDataType=JSON&iListNum=20&page={page}&iActId=2735'
        response = requests.get(url=url, headers=headers).json()
        # 总页数
        iTotalPages = int(response['iTotalPages'])
        # 列表数据
        img_list = response['List']
        print(f"正在爬取第{page}页的数据".center(100, '*'))
        for img_info in img_list:
            # 图片名称
            img_name = parse.unquote(img_info['sProdName']).strip()
            # 图片地址
            sProdImgNo_2 = img_info['sProdImgNo_2']
            save(img_name, sProdImgNo_2, "1024x786")
            sProdImgNo_3 = img_info['sProdImgNo_3']
            save(img_name, sProdImgNo_3, "1280x720")
            sProdImgNo_4 = img_info['sProdImgNo_4']
            save(img_name, sProdImgNo_4, "1280x1024")
            sProdImgNo_5 = img_info['sProdImgNo_5']
            save(img_name, sProdImgNo_5, "1440x900")
            sProdImgNo_6 = img_info['sProdImgNo_6']
            save(img_name, sProdImgNo_6, "1920x1080")
            sProdImgNo_7 = img_info['sProdImgNo_7']
            save(img_name, sProdImgNo_7, "1920x1200")
            sProdImgNo_8 = img_info['sProdImgNo_8']
            save(img_name, sProdImgNo_8, "1920x1440")
        # 下一页
        if page < iTotalPages:
            func(page + 1)


    # 保存图片到目录
    def save(img_name, url, size):
        # 找到真实的文件路径
        url = parse.unquote(url).replace("/200", "/0")
        # 文件保存路径
        path = os.getcwd() + f'\\{img_name}\\'
        # 如果目录不存在就创建目录
        if not os.path.exists(path):
            os.makedirs(path)
        try:
            with open(f"{path}{img_name}_{size}.jpg", 'wb') as f:
                f.write(requests.get(url).content)
            print(f"{img_name}_{size}.jpg,下载成功。")
        except Exception as e:
            print(f"{img_name}_{size}.jpg,下载失败。")
            pass


    if __name__ == '__main__':
        func()

### 3、结果展示 ###

![watermark_type_ZmFuZ3poZW5naGVpdGk_shadow_10_text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzE5MzA5NDcz_size_16_color_FFFFFF_t_70 3][]
